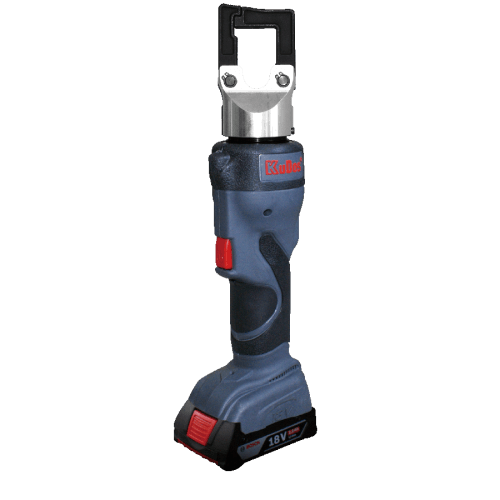

 Detail

Length:328 mm
Weight:1.9 kgs(w/o battery) / 2.3 kgs(2.0Ah battery included)

Specifications:
Drive unit: 18V DC motor
Charger (GS/CE):
Input voltage: 110V single phase AC
Input voltage: 230V single phase AC
Input frequency: 50~60 Hz
Reservoir capacity:48cc

Crimping Capacity:
Max pressure:420 bar
Max output:4 tons/39kN
Max compression:150 mm² copper
Accepts BEKU type dies
Stock Dies are for DIN46235 terminals
Dies sold separately
