 Detail

Height:338 mm
Weight:3.4 kgs

Specifications:
Drive unit: 14.4V DC motor
Charger (BOCSH):
Input voltage: KC-54-120
110V single phase AC
Input voltage: KC-54-230
230V single phase AC
Input frequency: 50~60 Hz
Input current:21.75VA

Cutting Capacity:
Max cable diameter:
Nonferrous 54 mm & steel supported
400-pair telecom cable

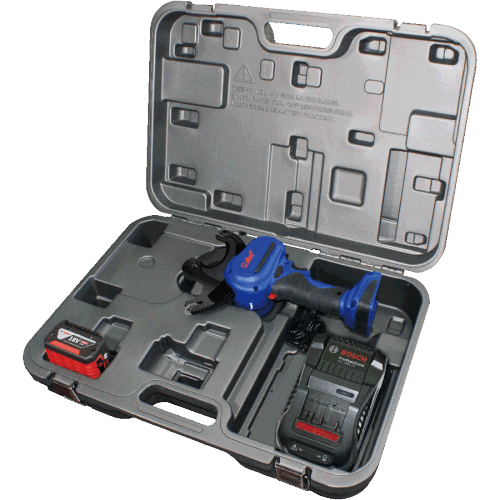

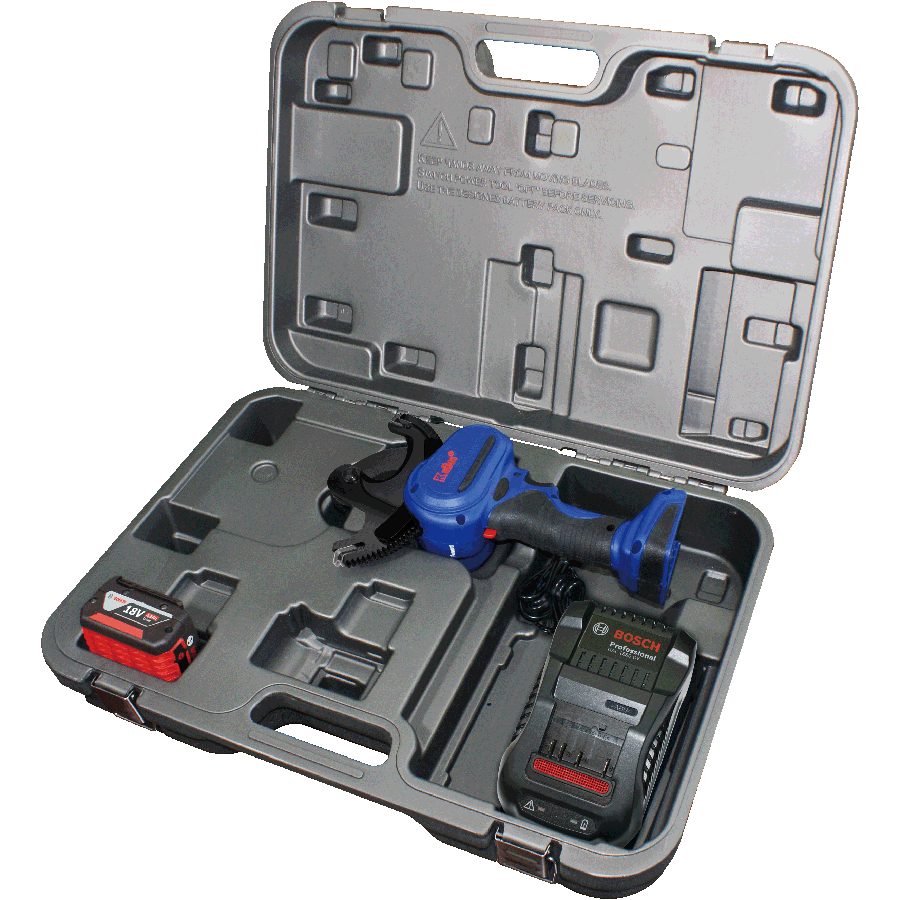

Accessories:
KuDos plastic carrying case
14.4V Battery, 110V or 230V Charger

※For reference only

                 Model no.                  Specification
Polyethylene cable 600V-CV325 mm²; (31 mm OD)
Multi-core vinyl insulation cable VVR150 mm²; (47 mm OD) 3 core
SB-ACSR ACSR120 mm²; (18.6 mm OD)
ACSR shall under steel of 2.0 mm
Hard aluminum cable HAL-OC400 mm²; (31.9 mm OD)
Hard copper cable OE-OC150 mm²; (21 mm OD)
SS cable 0.4 mm 400 CCP-F-SS(CR) cable
