Detail

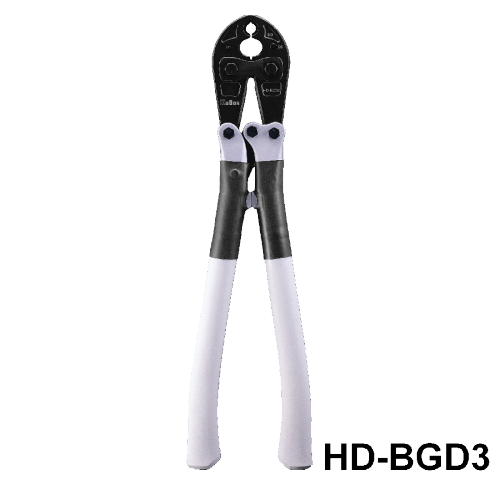

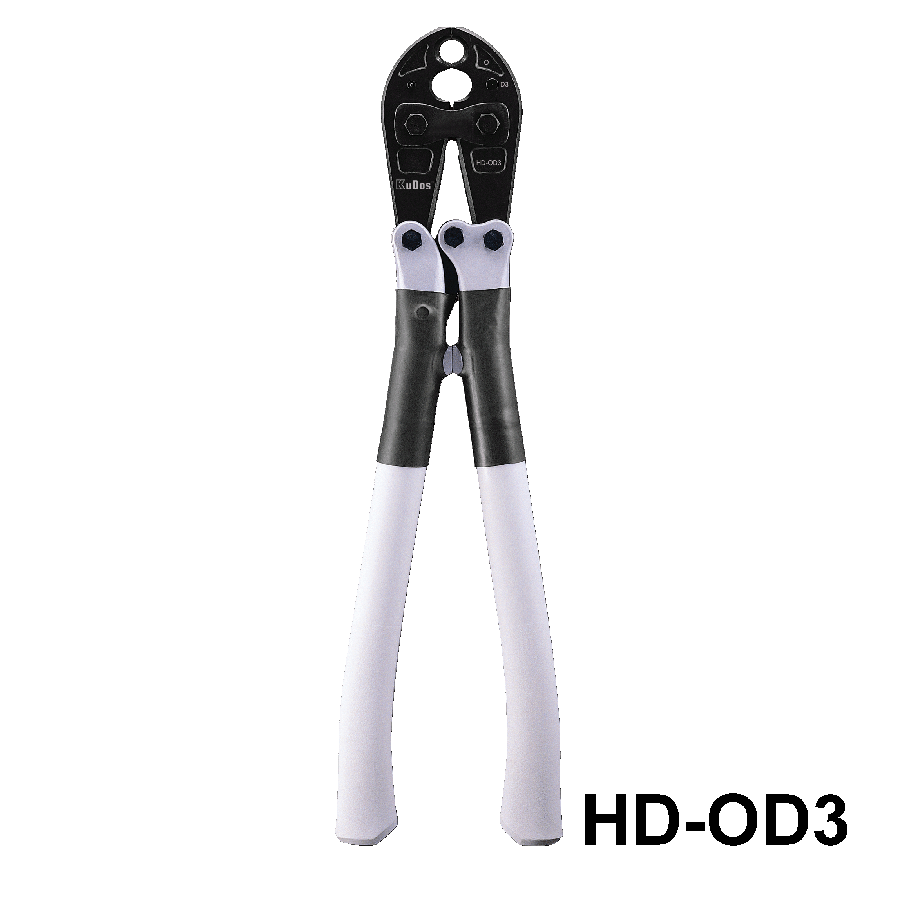

Length : 652 mm
Weight : 3.20 kgs
Packaging : box
■ Crimping capacity :
Crimping force : 4.5 ton
Uses w-style dies.

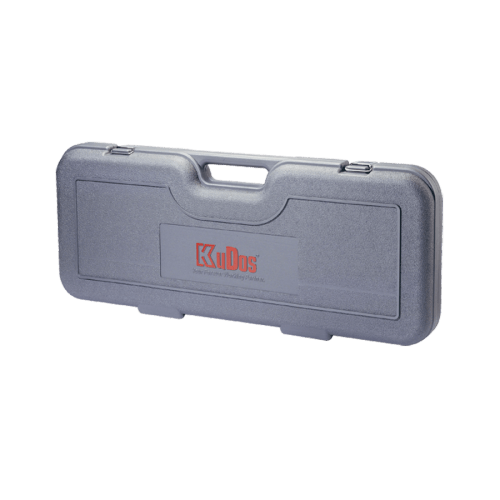

Storage carrying case & dies are sold separately.
■ Features :
Proper crimps are assured with butting steel jaws.
Increased strength and greater bearing area is provided with larger steel bolts.
Fast, easy, one-hand die insertion.
No lost dies with spring loaded positive lock die retainer buttons.
Full crimp force assured with over center cam action.
Operator protection provided with butt stops and heat shrink tubing.
Long life expectancy provided with fiberglass handles and lightweight high strength aluminum alloy castings.

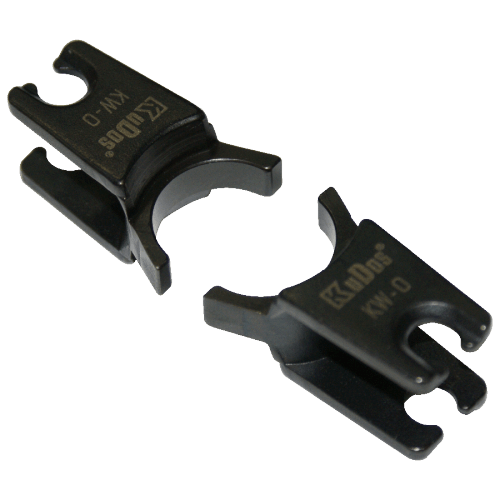

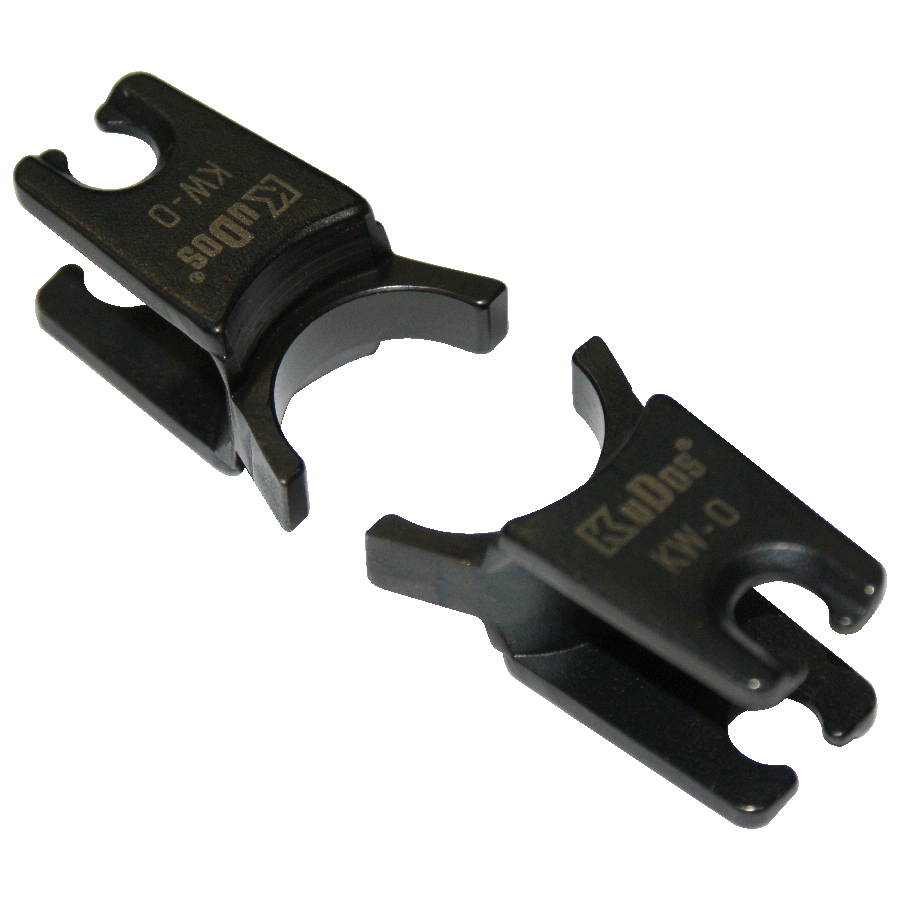

The “D3” groove accommodates the line of type “W”-die inserts.
■ Connector range :
Copper, aluminum, ACSR, copperweld, alumoweld, steel, 6201, 5005, compressed and compact conductors.
Copper taps : # 10 sol.-2/0 str.
Aluminum, ACSR taps : # 14 sol. -4/0 ACSR
Stirrups : # 6 acsr-4/0 ACSR
Overhead full tension deadend, full tension splices, non tension splices, and terminals conductor range : # 10 str. -4/0 ACSR
Code conductor connectors : # 6-4/0 str. Copper and aluminum
| KuDoS KW-Dies |
KW-BG |
KW-O |
KW-C |
KW-K840 |
KW-161 |
KW-162 |
KW-163 |
KW-164 |
| BURNDY W-Dies |
W-BG |
W-O |
W-C |
W-K840 |
W-161 |
W-162 |
W-163 |
W-164 |
| KuDoS KW-Dies |
KW-165 |
KW-166 |
KW-171 |
KW-237 |
KW-243 |
KW-247 |
KW-249 |
KW-702 |
| BURNDY W-Dies |
W-165 |
W-166 |
W-171 |
W-237 |
W-243 |
W-247 |
W-249 |
W-702 |
| KuDoS KW-Dies |
KW-241 |
KW-245 |
KW-660 |
KW-25RT |
KW-26RT |
KW-28RT |
KW2CRT |
KW5CRT |
| BURNDY W-Dies |
W-241 |
W-245 |
W-660 |
W-25RT |
W-26RT |
W-28RT |
W2CRT |
W5CRT |
