 Detail

Length : 562 mm
Weight : 6.9 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 47.5cc
Max. Output : 16.6 ton / 162.6 Kn
Bolting Range : M16~M22
                          (Hex. Nut range : 24-32mm)

■ Bolting Capacity :
Jaw opening : 33 mm
Ram Stroke : 20 mm

■ Features :
Light weight, compact and slim design.

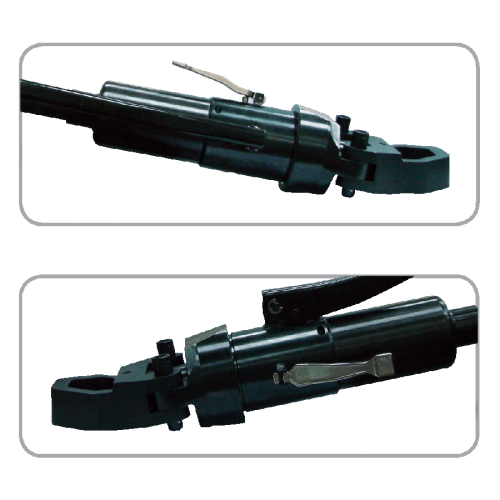

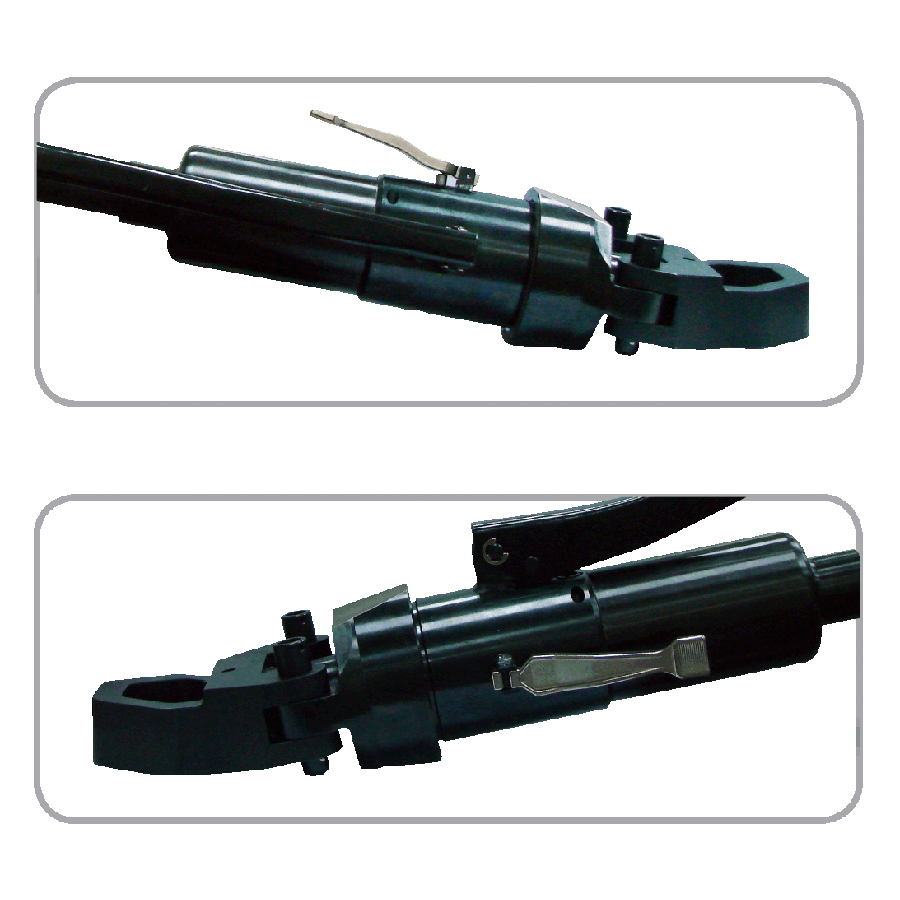

180° degree rotating head for convenient operation.
Single stage pumping.
Relief valve.

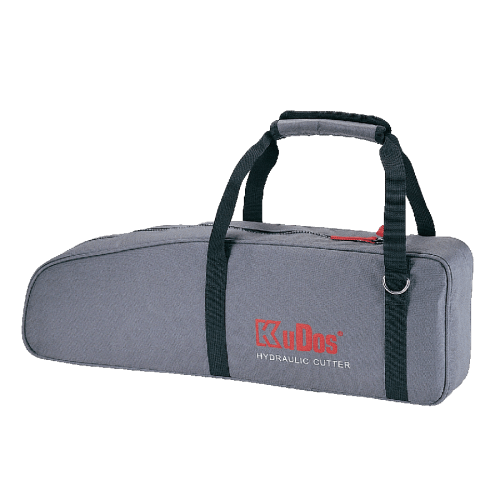

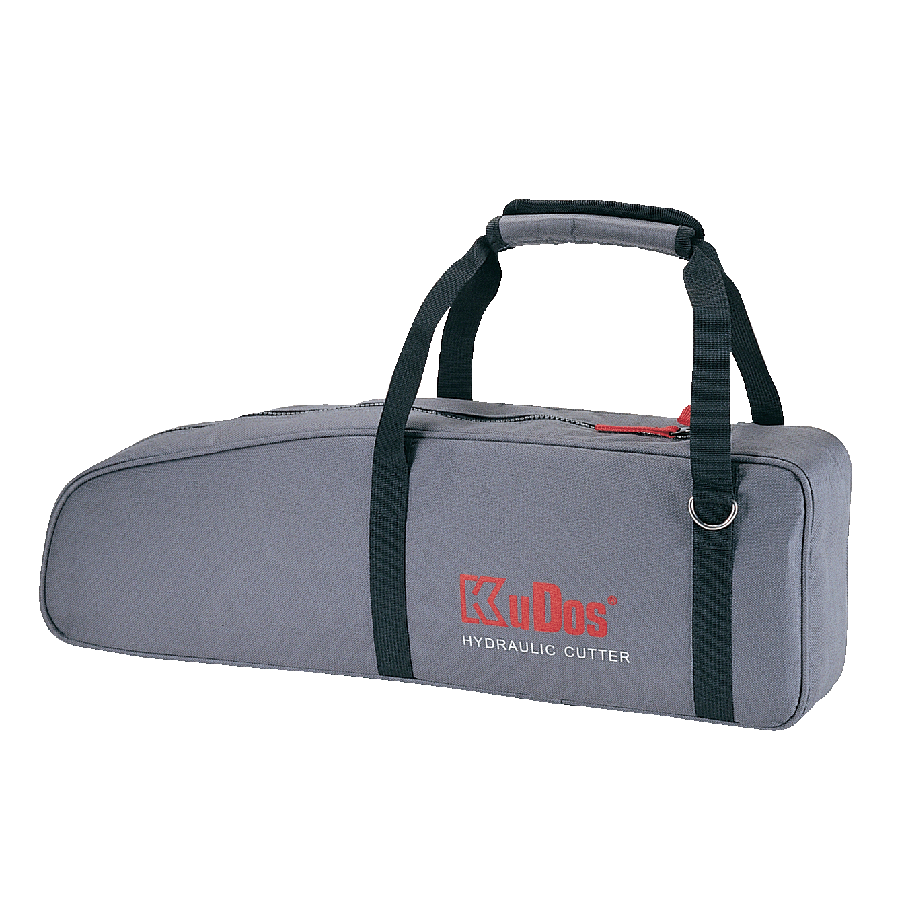

■ Accessories :
Carrying Bag

※Caution :
Only suitable for ≤ grade 8 nuts, splitting of stainless, square, and / or star nuts are prohibited.
Nut hardness must not exceed HRc-44.
