Detail
Height : 371 mm
Weight : 14.8 kgs
■ Specifications :
Throat Depth : 70 mm
Max. Pressure : 700 bar
Oil Required : 76 cc
Max. Output : 34.20 tons / 304.3 kN
■ Punching capacity :
Max. thickness : 15 mm
Max. diameter : 20.5 mm
20.5 mm diameter hole with 13 mm thick mild steel.
For angle iron, plates, beams and bus bars.
■ Features :
C-head made by forging for greater strength.
Convenient handle for easy carrying.
Base stand for easy positioning and accurate punching.
Single action piston/cylinder arrangement reduces iron chippings.
Punch and die changeover tools included.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Efficient and safe to use.
■ Accessories :
Round punching dies for mild steel (10.5, 13.5, 17.5, 20.5 mm)
Hand pin, 4 mm T-type wrench
Plastic carrying case
■ Other punching die option :

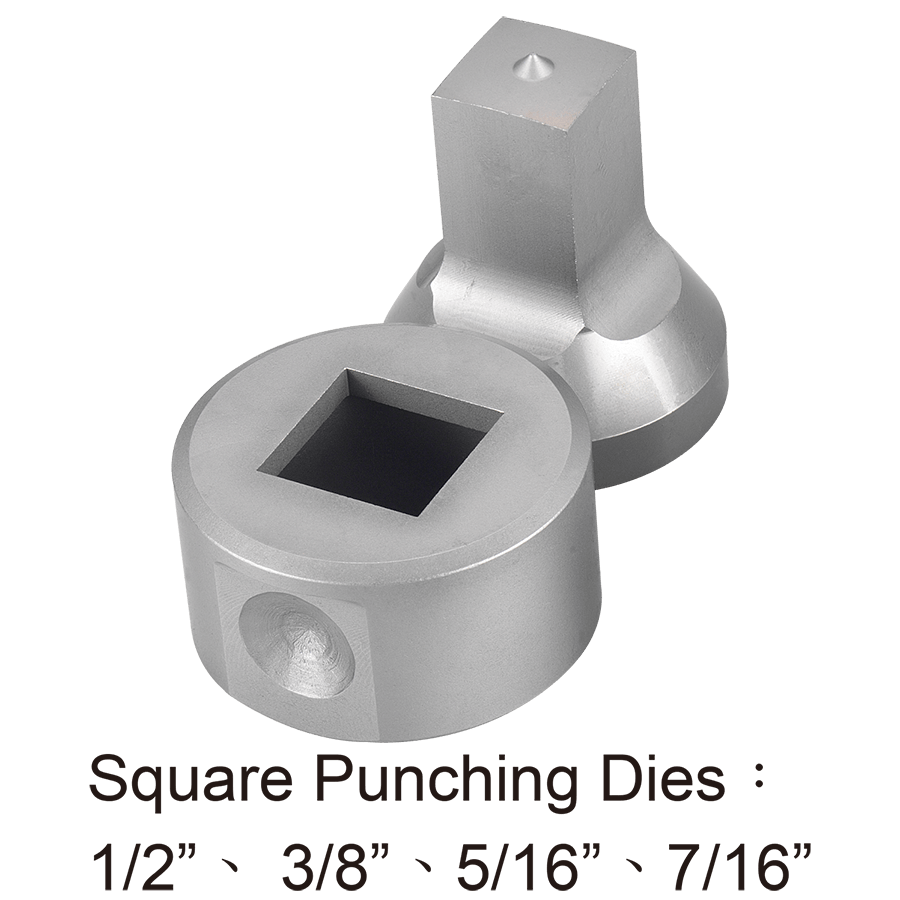

Square punching dies : 5/16”, 3/8”, 7/16”, 1/2”

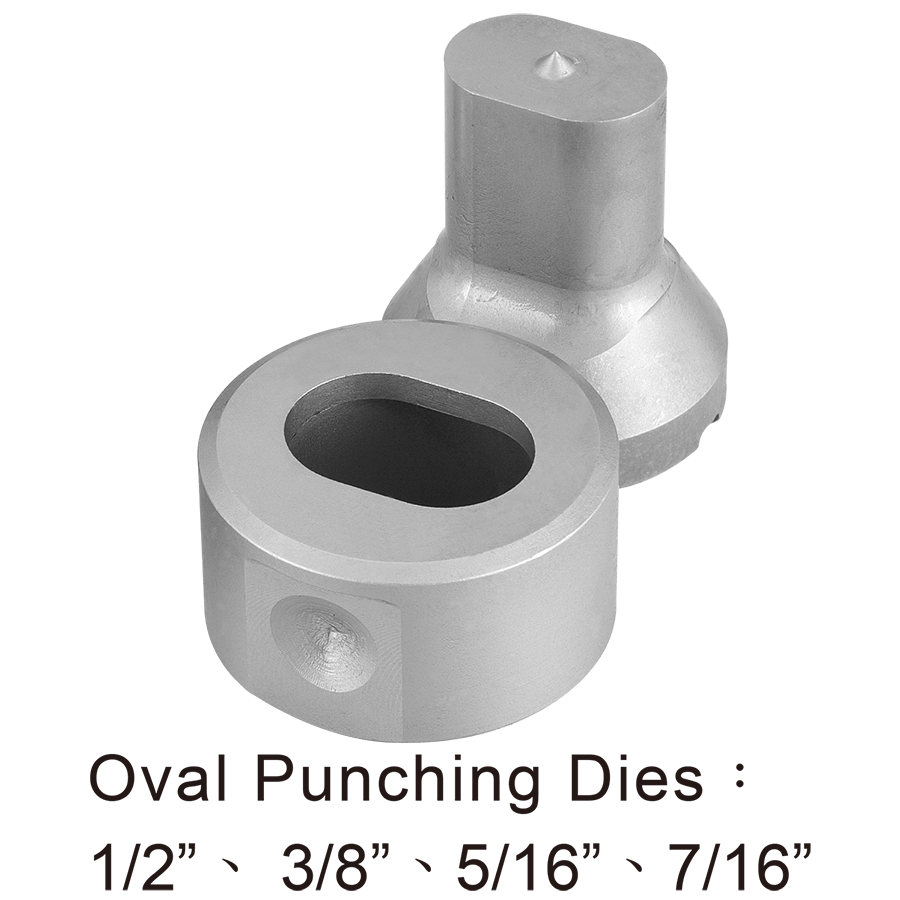

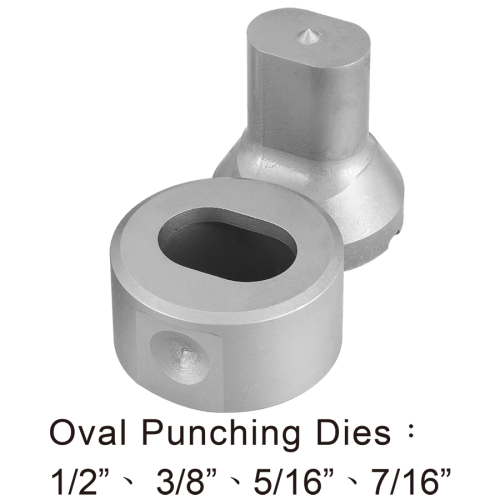

Oval punching dies : 5/16”, 3/8”, 7/16”, 1/2”
